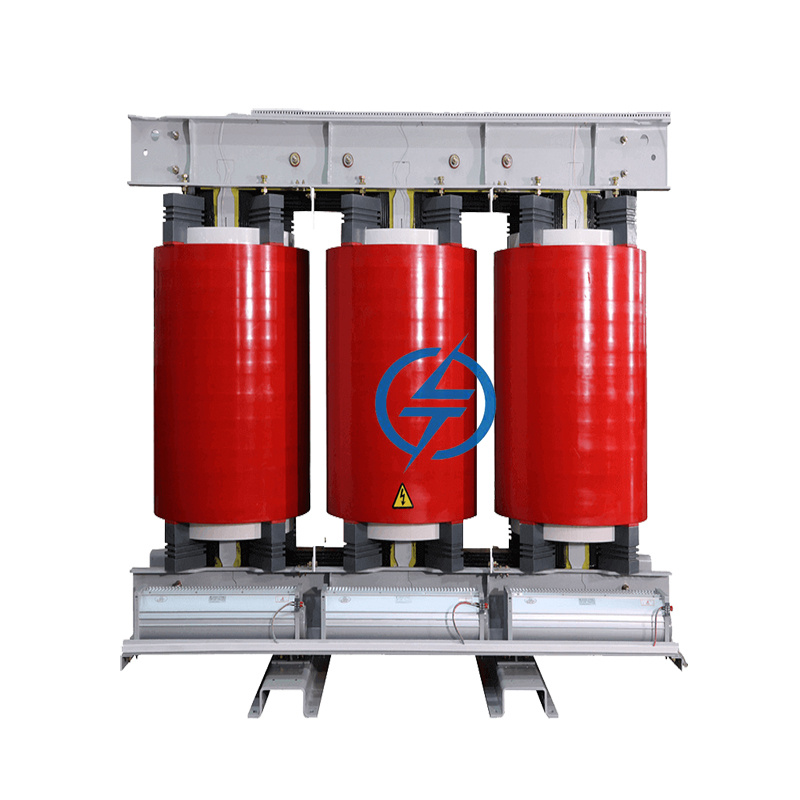

A cast resin dry type transformer is a type of electrical transformer that utilizes a unique insulation and manufacturing process to enhance its performance, safety, and reliability compared to traditional oil-filled or open-wound transformers. Here's a detailed explanation:

1. Dry Type Transformer: This refers to the fact that the transformer does not use any liquid coolant, such as oil, for heat dissipation. Instead, it relies on air for cooling. Dry type transformers are preferred in environments where fire safety is a concern, as they pose less risk of ignition or oil spills compared to oil-filled transformers.

2. Cast Resin: In this type of transformer, the windings (both primary and secondary) are encapsulated in a solid epoxy or polyester resin. The casting process involves vacuum impregnation of the wound coils with the liquid resin, followed by curing, which transforms the resin into a hard, solid mass. This encapsulation provides several advantages:

• Enhanced Insulation: The resin forms a complete encapsulation around the conductors, offering excellent electrical insulation properties. It prevents the ingress of moisture and dust, reducing the risk of electrical failures.

• Thermal Conductivity: The resin has good thermal conductivity, allowing heat generated within the transformer to dissipate efficiently into the surrounding air. This helps maintain safe operating temperatures without the need for additional cooling systems.

• Mechanical Strength: The solid resin casing adds mechanical stability to the windings, protecting them from vibrations, impacts, and environmental stress, thereby increasing the transformer's lifespan.

• Fire Safety: Since no flammable oil is used, cast resin transformers are inherently safer in fire-prone areas or buildings with strict fire codes. They emit less smoke and toxic fumes in case of a fire.

3. Applications: Cast resin dry type transformers are commonly used in indoor installations like shopping malls, hospitals, schools, and underground substations where fire safety and environmental concerns are paramount. They are also suitable for outdoor installations in harsh environments due to their robust construction and resistance to corrosion.

4. Efficiency & Ratings: These transformers can be designed to meet various efficiency standards, including high-efficiency classes. They are available in a wide range of voltage and power ratings to suit different electrical system requirements.

In summary, a cast resin dry type transformer is a highly reliable and safe electrical component that offers improved performance and durability over traditional transformer types, particularly in applications where safety and environmental considerations are crucial.
