 Loop Feed vs. Radial Feed Transformers: What's the Difference?

• In power distribution, how electricity is delivered to a transformer matters. The terms "loop feed" and "radial feed" describe two common methods, and they directly influence the design of pad-mounted transformers.


  1. What is a Radial Feed Distribution System?

• Radial Feed Systems: Simple and Direct

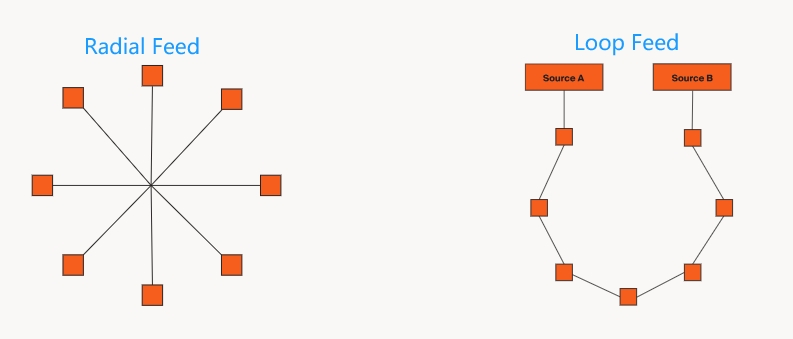

• A radial system is the simplest setup. Imagine a single power source (like a substation) with multiple lines radiating out to individual transformers, much like spokes on a wheel.

• How it works: Each transformer has one source of power.

  Drawback: If the main power source or any line segment fails, every transformer downstream from the fault loses power until it's fixed.

• Transformer Type: A radial feed transformer is designed for this system, typically with one primary high-voltage bushing for a single power connection.

• 2. What is a Loop Feed Distribution System?

Loop Feed Systems: Redundant and Reliable

A loop system is a more advanced, closed-loop circuit. Transformers are connected between two separate power sources.

• How it works: Power can flow from either direction. If one source fails or a cable is damaged, the system can be reconfigured to keep power flowing from the other source, minimizing outages.

  Advantage: This redundancy provides superior reliability, making it ideal for critical facilities like hospitals, data centers, and airports.

• Transformer Type: A loop feed transformer is built for this. It has two primary bushings, allowing it to connect to two different sides of the loop. This makes it incredibly versatile—a loop feed transformer can also be used in a simple radial system.

• 3. Which Transformer is Right for Your Project?

The loop feed transformer is the more flexible and reliable option. It can be used in both loop and radial systems, while a radial feed transformer can only be used in a radial system. The choice depends on project's need for cost-effectiveness versus maximum uptime and redundancy.
