Understanding Transformer Polarity: Ensure Safe and Efficient Operation

Transformer polarity is a fundamental concept that must be carefully considered when connecting transformers in parallel to increase system capacity or when building a three-phase bank from single-phase units. Proper understanding and verification of polarity are essential to avoid equipment damage, ensure system reliability, and facilitate accurate metering and protection.

Polarity markings on a transformer identify the terminals where the input and output voltages are in phase—meaning they share the same instantaneous polarity. This is especially critical when installing current transformers for protective relaying and energy metering, as incorrect polarity can lead to measurement errors or failure of protective devices.

The polarity of a transformer depends on the direction of the winding around the core (clockwise or counterclockwise) and how the leads are connected. These markings are typically indicated by dots, plus-minus symbols, or other notations on the transformer body and nameplate.

How to Test Transformer Polarity

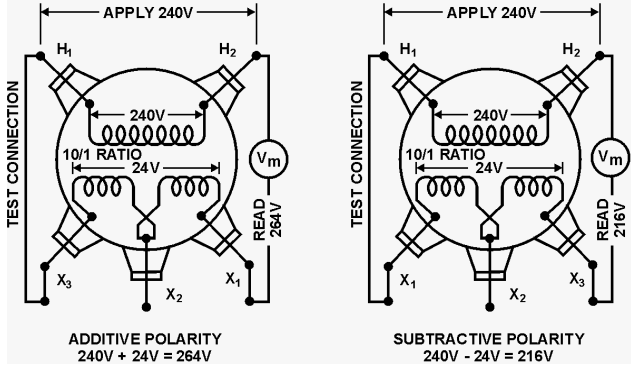

A common method for determining transformer polarity involves using a low-voltage AC source to energize the primary winding. Follow these steps:

1.Connect a jumper wire between the H1 and X1 terminals.

2.Place a voltmeter across the H2 and X2 terminals.

3.Apply a reduced AC voltage between H1 and H2.

4. Record the voltage reading shown on the meter.

⚠️ Safety First: Always use the lowest practical voltage to minimize risks. An adjustable AC power source is ideal for this test.

Interpreting Results:

• If the voltmeter reading is approximately the sum of the applied voltage and the expected secondary voltage, the transformer has additive polarity.

• If the reading is significantly lower than the applied voltage, the transformer has subtractive polarity.

Verifying transformer polarity is a vital step in ensuring correct installation and operational safety. Whether you’re expanding capacity or building a three-phase system, applying this knowledge helps prevent costly errors and enhances performance.
